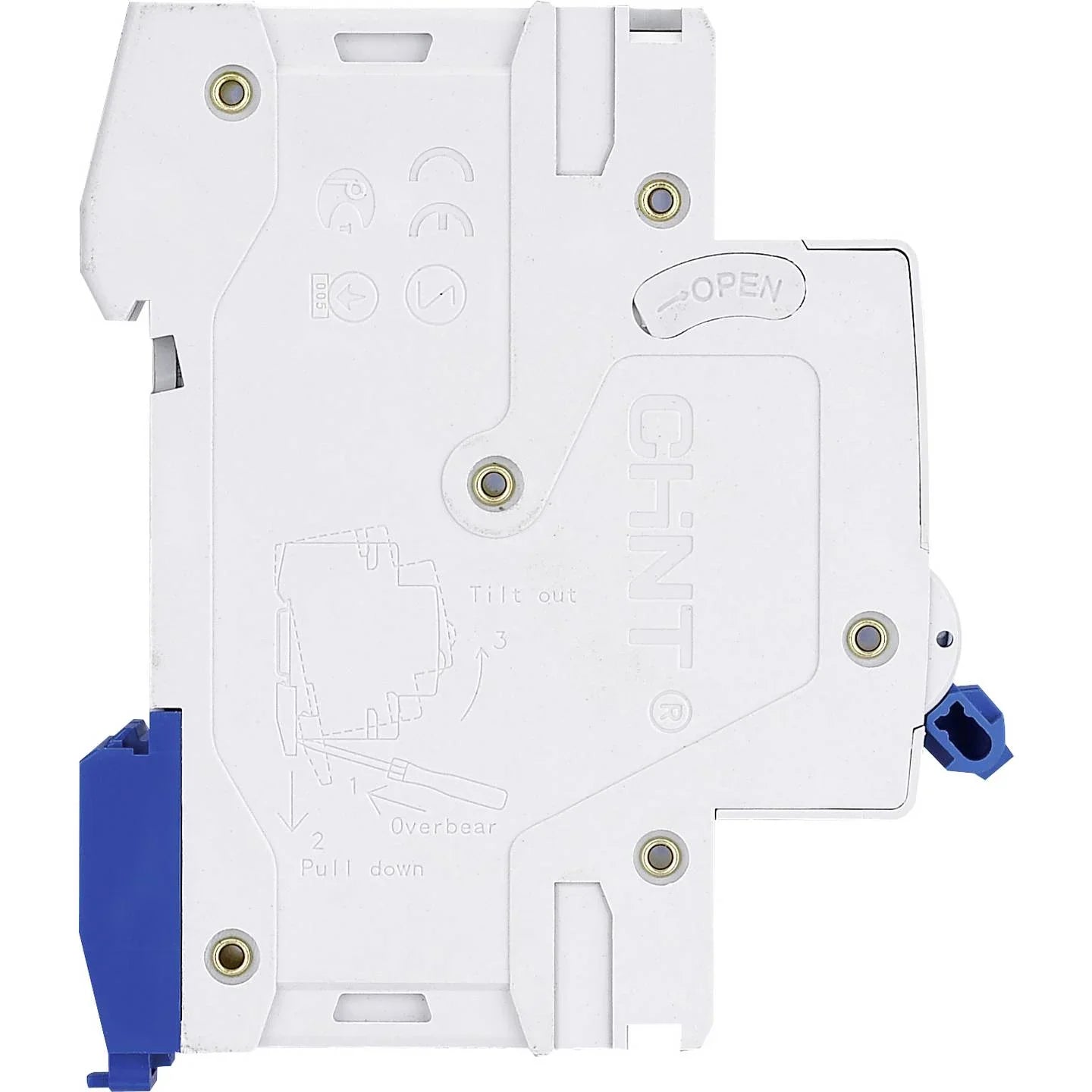

Chint NB1L-63 miniature circuit breaker 1-pole C10/16/20/25/32A 6kA
Chint NB1L-63 miniature circuit breaker 1-pole C10/16/20/25/32A 6kA
plus 19% VAT
Couldn't load pickup availability
CHINT NB1L-63 1-Pole C Curve Circuit Breaker 10–32 A, 6 kA
The CHINT NB1L-63 1-pole circuit breaker with C tripping characteristic is designed for single-phase electrical circuits with higher inrush currents. It provides reliable protection against overload and short circuit and is suitable for professional electrical installations in commercial, technical and building applications.
The available rated currents of 10, 16, 20, 25 and 32 A allow flexible use in different single-phase circuits, while the 6 kA breaking capacity supports dependable protection in standard low-voltage installations.
1-pole protection for single-phase circuits
- 1-pole circuit breaker
- C tripping characteristic
- Rated currents: 10, 16, 20, 25 and 32 A
- Breaking capacity: 6 kA
- Protection against overload and short circuit
- Suitable for professional single-phase installations
C characteristic for higher inrush currents
The C tripping characteristic is especially suitable for circuits where short-term higher starting currents can occur.
- Suitable for motors and inductive loads
- Suitable for equipment with increased switch-on current
- Designed for commercial and technical electrical installations
- Single-pole protection for individual circuits
Reliable protection for cables and electrical equipment
The CHINT NB1L-63 supports protection of cables, lines and connected equipment in the event of overload or short circuit.
- Reliable switching behaviour
- Compact design for distribution boards
- Suitable for professional electrical projects
- Certified according to VDE, CE, CB Test and TÜV documentation provided below
Typical applications
- Single-phase electrical circuits
- Commercial electrical installations
- Motors and inductive consumers
- Technical equipment with higher starting currents
- Distribution boards
- Professional installation and project business
Technical data
| Certificates | VDE, CE, CB Test, TÜV |
| Rated current | 10 / 16 / 20 / 25 / 32 A |
| Number of poles | 1 |
| Tripping characteristic | C |
| Breaking capacity | 6 kA |
| Dimensions (L × W × H) | 78 × 18 × 86 mm |
| Manufacturer colour | Blue / White |
Downloads
Minimum order quantity
Minimum order quantity: 12 pieces
