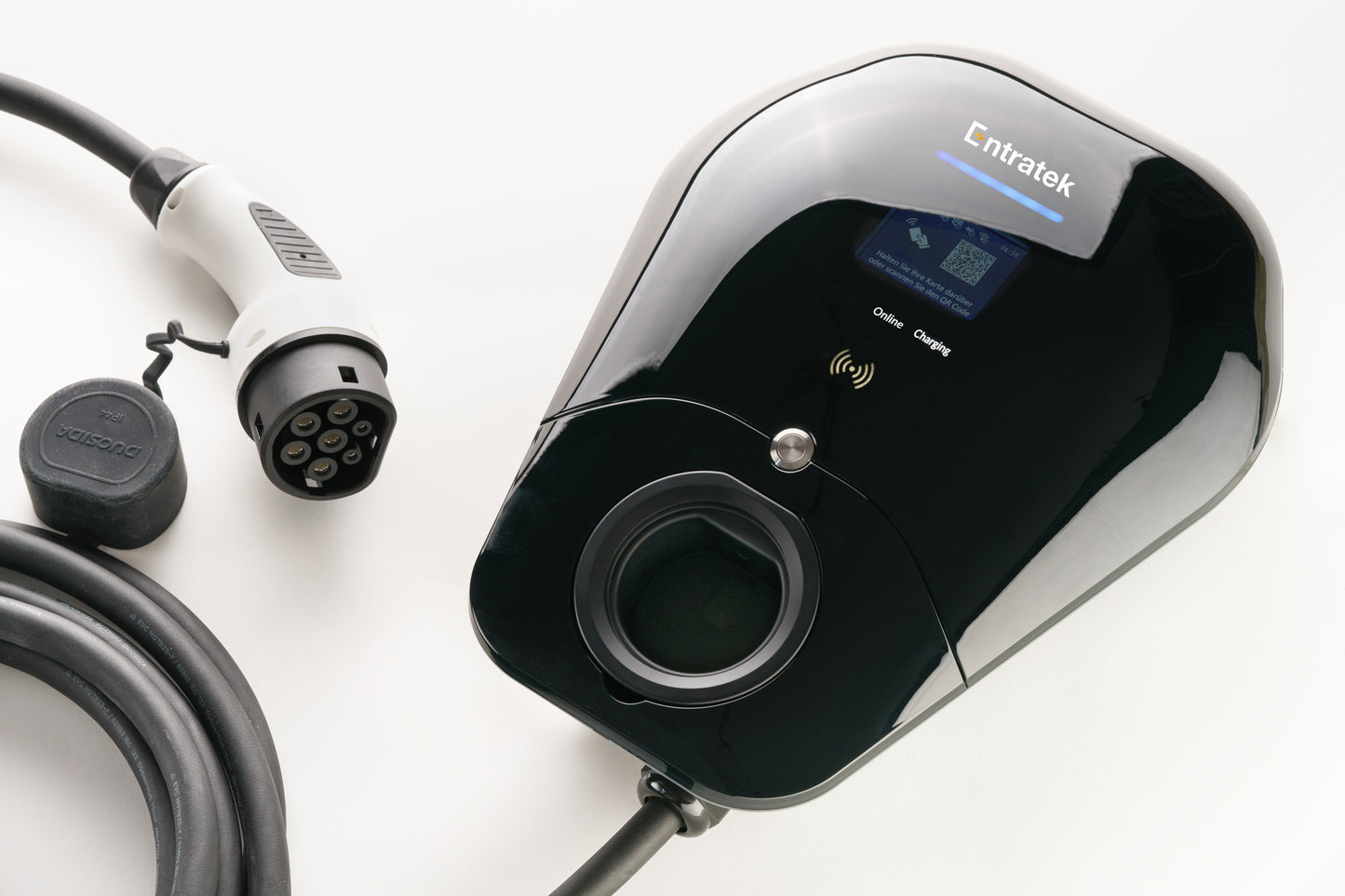

Entratek Wallbox Power Dot Fix 22 kW with MID meter

Entratek Power Dot Fix 22 kW Wallbox with MID Meter, Wi-Fi & LAN

The Entratek Power Dot Fix 22 kW is a smart AC charging station for electric and plug-in hybrid vehicles with a Type 2 connection. It is suitable for residential buildings, underground car parks, company parking areas and fleet locations.

With an integrated MID-certified electricity meter, RFID access, app control and both Wi-Fi and LAN connectivity, the Power Dot Fix offers a flexible solution for private and commercial charging infrastructure.

Integrated MID-certified electricity meter

The integrated MID meter enables accurate recording of the energy used during charging. This makes it possible to track charging sessions for different vehicles or users at the same charging point.

Note: If charging sessions are billed to external users at publicly accessible charging points, additional legal metrology requirements may apply. A MID meter alone does not replace a fully calibration-law-compliant billing solution.

Power Dot Fix User Manual

Up to 22 kW charging power

• Charging power up to 22 kW
• Can be limited to 11 kW
• Adjustable charging current from 6 A to 32 A
• Suitable for electric and plug-in hybrid vehicles with Type 2 charging connection

Wi-Fi and LAN connectivity

The Power Dot Fix supports both Wi-Fi and Ethernet/LAN, making it suitable for locations such as underground car parks where a reliable wired network connection may be required.

• Wi-Fi
• LAN / Ethernet
• RS485
• Can be used as a Wi-Fi repeater
• OCPP 1.6 JSON
• Modbus

RFID, app and physical button access

• RFID cards and RFID chips
• App control
• Physical button access
• Remote start and stop of charging sessions
• Display of charging data and charging status
• RFID access management
• Export of charging history

Dynamic load management for larger charging infrastructure

In combination with the Entratek Load Manager Set, dynamic load management can be implemented across multiple charging points.

The charging power of connected wallboxes can be controlled according to the available electrical capacity.

PV surplus charging

With the optional Load Manager Set, the Power Dot Fix can be integrated into a PV surplus charging concept.

According to the available product data, three operating modes are available:

• Full
• Solar Assist
• Solar Only

This allows available PV surplus energy to be used specifically for electric vehicle charging.

Charging solution for fleets and company sites

In combination with a compatible backend, the Power Dot Fix can be used for fleet and commercial charging infrastructure.

• Central monitoring of charging sessions
• Management of multiple users
• Recording of consumption data
• Export of charging data
• Support for internal and external charging processes

Installation with single- or double-sided pedestal

With the matching Entratek pedestal, one or two wallboxes can be installed as a freestanding charging solution depending on the selected version.

Technical data

• Charging power: up to 22 kW
• Can be limited to 11 kW
• Charging current: 6–32 A
• Integrated MID-certified electricity meter
• Connection: Type 2 socket or 7 m charging cable, depending on variant
• Access: RFID, app or physical button
• Communication: LAN, Wi-Fi and RS485
• Protocols: OCPP 1.6 JSON and Modbus
• Display: 2.8-inch LCD
• Integrated DC residual current detection: 6 mA DC
• TLS 1.2 encryption protocol
• Local static load management via master/slave principle possible
• Dynamic load management and PV surplus charging with optional Load Manager Set
• Integrated plug holder
• Security screw for theft protection

App functions

• Eco mode with time-based charging control
• Adjustable charging current from 6 A to 32 A
• Remote start and stop of charging sessions
• Display of charging data and charging status
• RFID access management
• Group and member management
• Recording of charging consumption data
• Export of charging history

Warranty

• 3-year product warranty
• 24-month statutory warranty

Scope of delivery

• 1 × Entratek Power Dot Fix 22 kW with socket or 7 m cable, depending on variant
• 2 × RFID cards
• 2 × RFID chips
• 1 × User Manual
• 1 × App Guide
