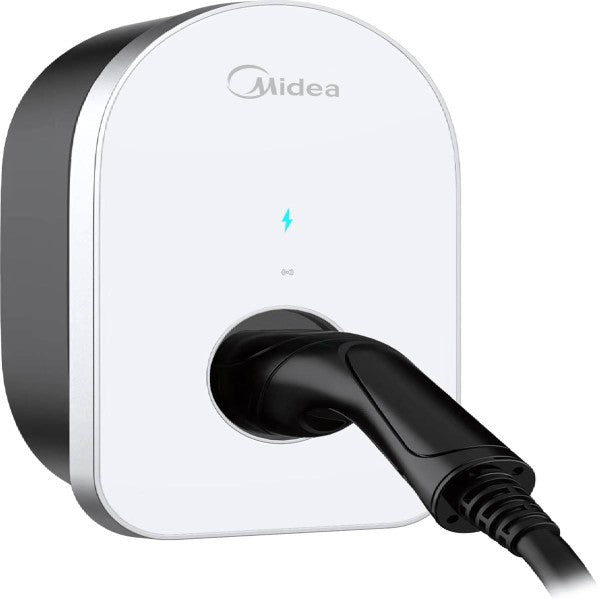

Midea MHELIOS 11 kW Wallbox V1-AC11K

<h2>Midea MHELIOS 11 kW Wallbox – Smart Charging for Your EV</h2>

<p>The <strong>Midea MHELIOS 11 kW Wallbox</strong> is designed for convenient and safe charging of electric and plug-in hybrid vehicles in residential environments. It combines modern technology with high efficiency and supports fast three-phase charging with integrated safety functions, smart connectivity and a robust housing for everyday use in garages, carports or outdoor areas.</p>

<p>With a <strong>charging power of up to 11 kW</strong>, the wallbox helps reduce charging times while offering intelligent control via app or RFID. Whether for a single EV or a household with multiple users, the Midea MHELIOS provides reliable, efficient and future-ready charging.</p>

<h3>Benefits</h3>

<ul>
<li><strong>Smart control:</strong> Wi-Fi, Bluetooth and Ethernet allow convenient control via the Midea app. Start, stop and monitor charging at any time, including remotely.</li>
<li><strong>High safety:</strong> integrated residual-current protection (30 mA Type A + 6 mA DC) as well as overvoltage, undervoltage and additional protection functions support safe operation.</li>
<li><strong>Efficient and durable:</strong> IP55 protection, robust housing and an operating temperature range from -30°C to +50°C make the wallbox suitable for indoor and outdoor use.</li>
<li><strong>User-friendly:</strong> the LED display shows charging status with clear color coding. Charging can also be started using an RFID card, ideal for multi-user households.</li>
<li><strong>Future-ready:</strong> supports OCPP 1.6 J for integration with energy management systems and optional dynamic load balancing via smart meter, making it suitable for PV integration.</li>
</ul>

<h3>Product Specifications</h3>

<ul>
<li><strong>Model:</strong> Midea MHELIOS V1-AC11K</li>
<li><strong>Charging power:</strong> 11 kW (three-phase, 3 × 16 A)</li>
<li><strong>Rated voltage:</strong> 400 V AC (50/60 Hz)</li>
<li><strong>Charging mode:</strong> Mode 3 according to IEC 61851</li>
<li><strong>Charging connector:</strong> Type 2 (IEC 62196-2)</li>
<li><strong>Communication:</strong> Wi-Fi / Bluetooth / Ethernet / RS485 for smart meter / EMS</li>
<li><strong>Protocol:</strong> OCPP 1.6 J</li>
<li><strong>User interface:</strong> LED status indicator (green = ready, blue = charging, red = fault)</li>
<li><strong>Authentication:</strong> Plug & Play, RFID, app authorization</li>
<li><strong>Residual-current protection:</strong> integrated (30 mA AC + 6 mA DC)</li>
<li><strong>Protection rating:</strong> IP55</li>
<li><strong>Operating temperature:</strong> -30°C to +50°C</li>
<li><strong>Humidity:</strong> 5–95% non-condensing</li>
<li><strong>Housing material:</strong> polycarbonate, robust and UV-resistant</li>
<li><strong>Dimensions (H × W × D):</strong> 316 × 197 × 93 mm</li>
<li><strong>Cable length:</strong> 5 m Type 2 cable</li>
<li><strong>Weight:</strong> approx. 3.5 kg net</li>
<li><strong>Installation:</strong> wall or floor mounting</li>
</ul>

<p><a href="https://doc.entratek.de/Midea_Datenblatt_Wallbox11kW.pdf" target="_blank" rel="noopener"><strong>Download data sheet</strong></a></p>

<h3>Scope of Delivery</h3>

<ul>
<li>Midea MHELIOS 11 kW Wallbox with permanently attached 5 m Type 2 charging cable</li>
<li>RFID card for user authentication</li>
<li>Quick start guide and full operating manual</li>
<li>Mounting accessories</li>
</ul>

<p>The <strong>Midea MHELIOS 11 kW Wallbox</strong> combines safety, smart control and modern design. Whether controlled via app, RFID or Plug & Play, it provides convenient, efficient and reliable EV charging.</p>
