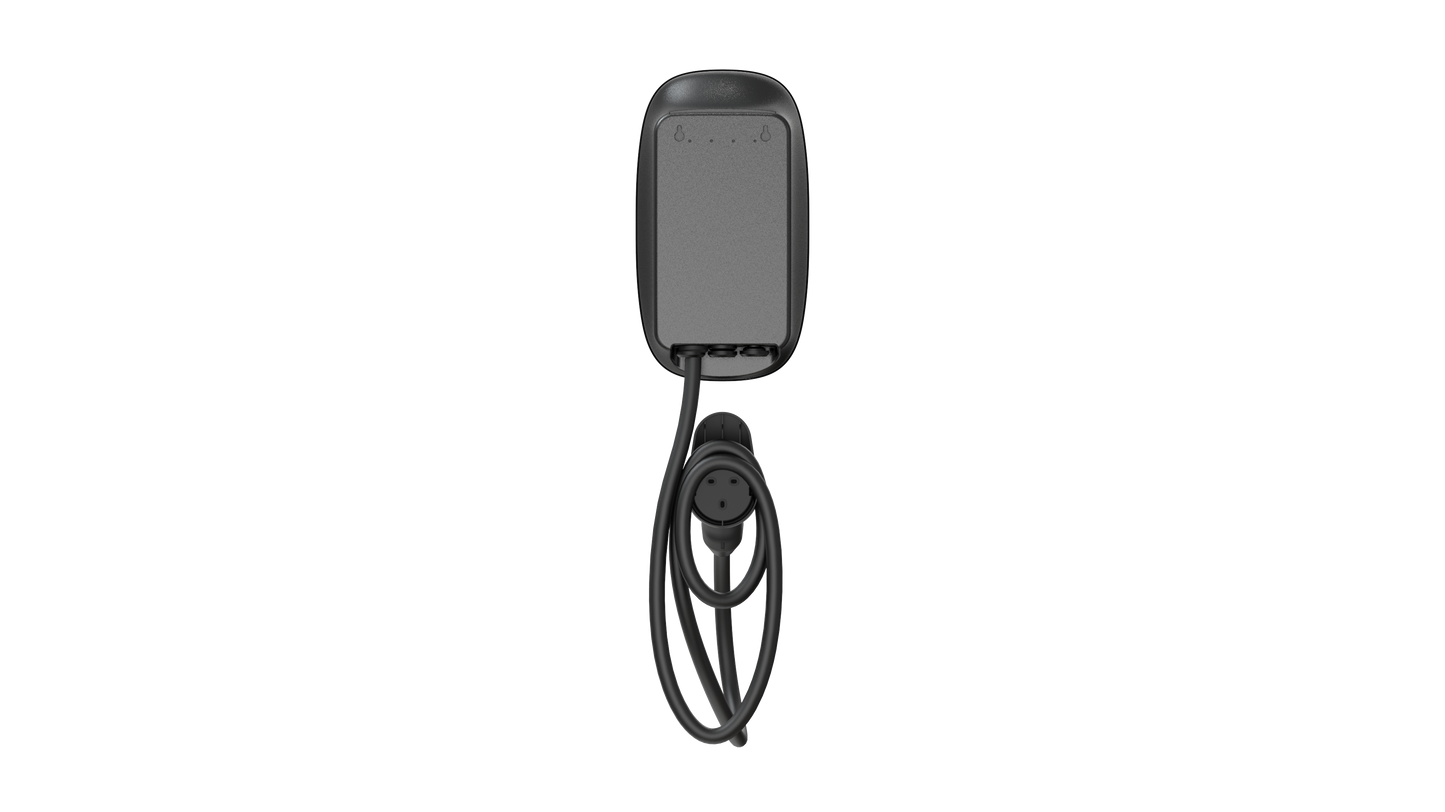

Entratek Wallbox Power Dot Eco+ (KfW442) 11 kW 7 m Schuko cable | WLAN & LAN & App & OCPP1.6

Our wallbox with WLAN & LAN connection (Ethernet) is the perfect solution for your electric vehicle charging needs. With its robust design and reliable LAN port, it provides an effortless and stable connection to the power source. Thanks to the generous 7-meter charging cable, you have complete flexibility in placing the wallbox, which makes charging much easier in different situations.

This wallbox is ideal for outdoor use as it IP65 protected against splash water and dust is. You can Charge your electric vehicle safely in different weather conditions without having to worry about the safety or integrity of the wallbox.

This wallbox is particularly future-proof and adaptable thanks to the optional accessories for dynamic load management and the use of PV surplus charging. This allows you to optimize and efficiently use your renewable energy sources.

The Power Dot Eco+ is by KfW 442 been classified as eligible! Ie you You will receive a €600 subsidy for the purchase and installation of each wallbox. Position from September 26, 2023 Submit your funding application and then order from us or our specialist partner. Funding for 2024 will follow.

The wallbox with LAN connection, generously sized charging cable, and excellent weather protection is the ideal choice for charging your electric vehicle reliably, efficiently, and with a future-proof design. Don't miss the opportunity to take your electric vehicle charging to the next level.

Main functions
1. Technical details

► Wi-Fi & LAN & Bluetooth

► Charging power up to 11 kW, adjustable

► Access via RFID or plug-and-play

► Integrated Mode 3 charging cable and Type 2 connector

► OCPP 1.6 JSON

2. Design

► LED status display

► Charging cable 7 meters

► Installation for indoor and outdoor use

► Simple and cost-effective installation

► The compact wallbox for intuitive use

3. Advantages

► Standby consumption only 2 W

► Incl. 24-month warranty

► Additional residual current device required: Type A (30 mA)

► Integrated DC fault current detection: DC 6 mA

► For all electric and hybrid vehicles with Type 2 charging socket

► Load Balance & PV Surplus Charging (This function requires additional  Load Management Hub necessary.)

4. Intelligent control via app

► Control of charging power

► Control of the charging period

► Remotely start & stop charging process

► Manage RFID access via app

► Recording consumption data from charging processes

Document:

User manual

App instructions

Scope of delivery:

Wallbox x 1

RFID chips x 2

Cable hanger x 1

Sealed cap x 1

· Screws x 14
