Real-time monitoring of total household electricity | Automatic detection of energy surpluses | Use of solar power without grid feed-in possible | Optimal performance thanks to EcoFlow's OASIS algorithm

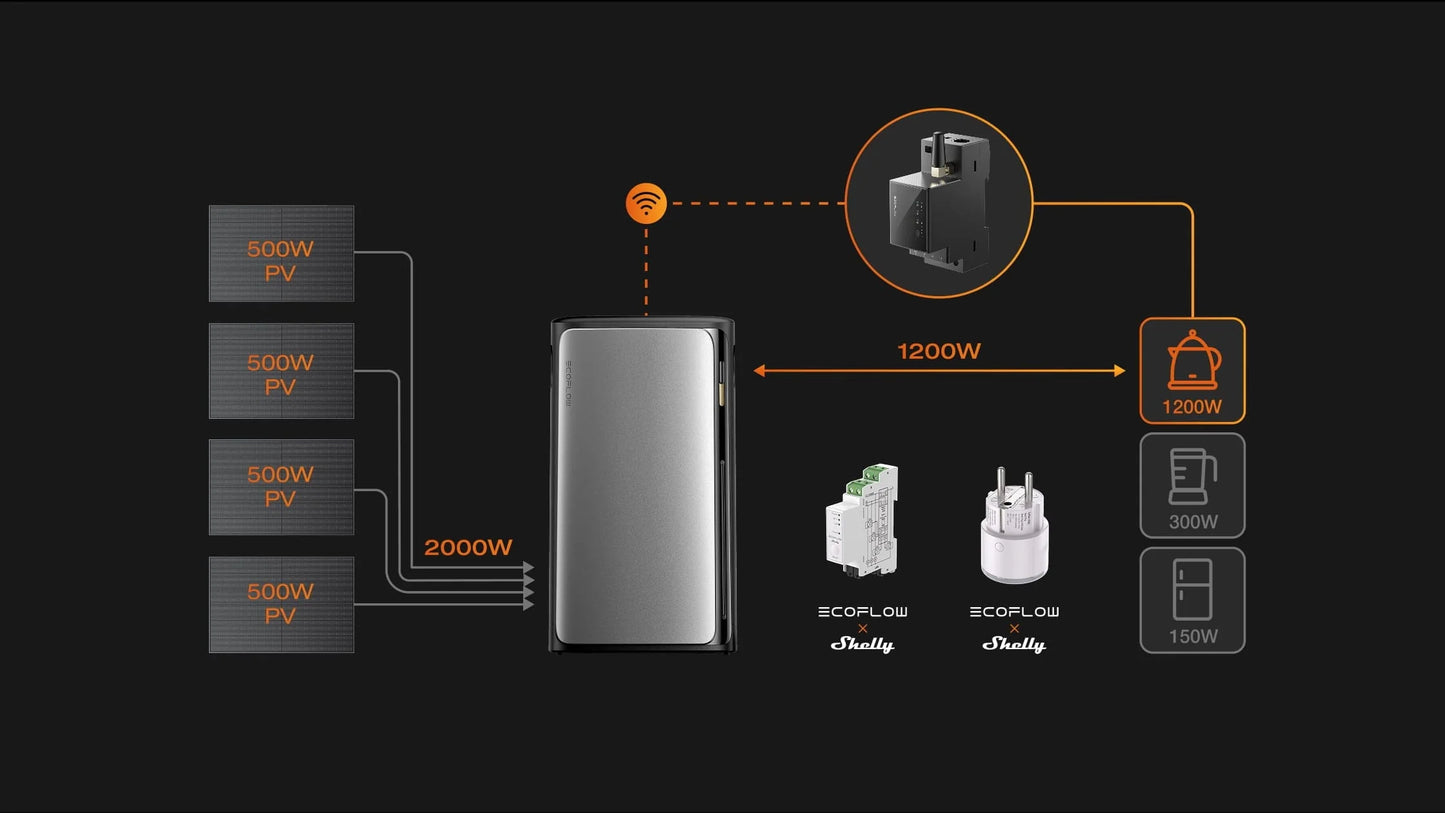

Implementation of intelligent energy monitoring for the entire home in the STREAM system
Household appliances such as lamps and permanently installed kitchen appliances cannot be monitored with plug-and-play smart plugs. In this case, a smart meter is required to monitor electricity consumption throughout the household and enable the system to automatically create schedules.
Can be combined with STREAM AC Pro for energy storage in the PV system
Thanks to its AC-coupling design, the STREAM AC Pro can be easily integrated into existing solar systems, enabling plug-and-play energy storage. By adding a smart meter, the system can determine when to charge and when to use AC Pro to power the household, maximizing the use of solar energy.
Easy to install
Only simple installation and connection is required, with no high installation costs or the need for circuit modifications.
Main features
- Installation method : DIN rail installation
- Meter phases : 3-phase / 1-phase
- Communication methods : Wi-Fi / Bluetooth (users can enable or disable each connection option) RS-485 communication (for production testing and monitoring)
- Current transformer connection : External split core current transformers, 3 current transformer inputs
- Voltage signal connection : 4 line inputs: 3 L and 1 N or 1 L and 1 N
- Calibration : Supports only on-site calibration
- Planned lifetime : 10 years
-
Warranty : 2 years
accuracy
- Nominal voltage : ±0.5%
- Current : ±0.5%
- Active power : ±1%
- Reactive power : ±1%
- Apparent power : ±1%
- Power factor : ±1%
- Frequency : ±0.02 Hz
- Basic phase (voltage/current): ±1°
- Harmonics : Class S (GB/T 19862-2016, IEC 61000-4-30, IEC 61000-4-7)
- Active energy : Class B GBT 17215.321-2021 EN 50470-3-2022
- Basic reactive energy : Class 1 (GB/T 17215.324-2022, IEC 62053-24:2020)
Technical data of the current transformer (CT)
- Rated current (In): 48 mA
- Measuring range : 0.1% In ~ In
- Starting current : 0.1% In
Voltage and frequency parameters
- Nominal voltage (Un): ~230 V LN / 400 V LL
- Measuring range (LN): 100 V ~ 1.2 Un (ie 100-276 V)
- Starting voltage (LN): 100 V
- Frequency : 45-65 Hz
- Power consumption : <0.02 VA per phase
Physical specifications
- Size (H × W × D): 90 × 66 × 36 mm
- Weight : 115 g
- Protection class : IP30
- Conductor cross-section : 0.5 to 2.5 mm² / 20 to 14 AWG (rigid cables, stranded wires and wire end ferrules)
- Wire stripping length : 6 to 7 mm
- Housing material : plastic
- Color : black
Environmental conditions
- Operating temperature : -25 °C to 70 °C
- Storage temperature : -40 °C to 85 °C
- Humidity : 5% to 95% RH
- Maximum altitude : 3 000 meters
Electrical parameters
- Power supply voltage (AC): 100-276 V, 50/60 Hz
- Maximum power consumption : < 3 W
- Current measuring range : 0-120 A (via CT per phase and neutral conductor)
- CT compatibility: CT 120 A
- CT cable length : 50 cm
- Antenna extension cable : 1.5 m
- Power and energy measurements : Active/apparent power and energy, power factor, basic active/reactive energy, radio frequency and connectivity
- RF frequency band : 2 400-2 495 MHz
- Maximum RF power : 2.4G 11b 11 Mbps, TRP ≥14 dBm, TIS < -80 dBm
- WLAN protocol : 802.11 b/g/n
- Wi-Fi range : Up to 30 m indoors and 50 m outdoors (depending on local conditions)
- Bluetooth protocol : 4.2
- Bluetooth range : Up to 10 m indoors and 30 m outdoors (depending on local conditions)
- Button requirement : 1 button (Reset + WLAN function)
1. After installing a STREAM series battery and a compatible smart meter, devices can be remotely turned on and off and scheduled using compatible smart plugs with the EcoFlow app – thus optimally using solar power and minimizing waste.
