Flat Roof Mounting System for 4 Solar Modules – South or East/West Orientation, 10°

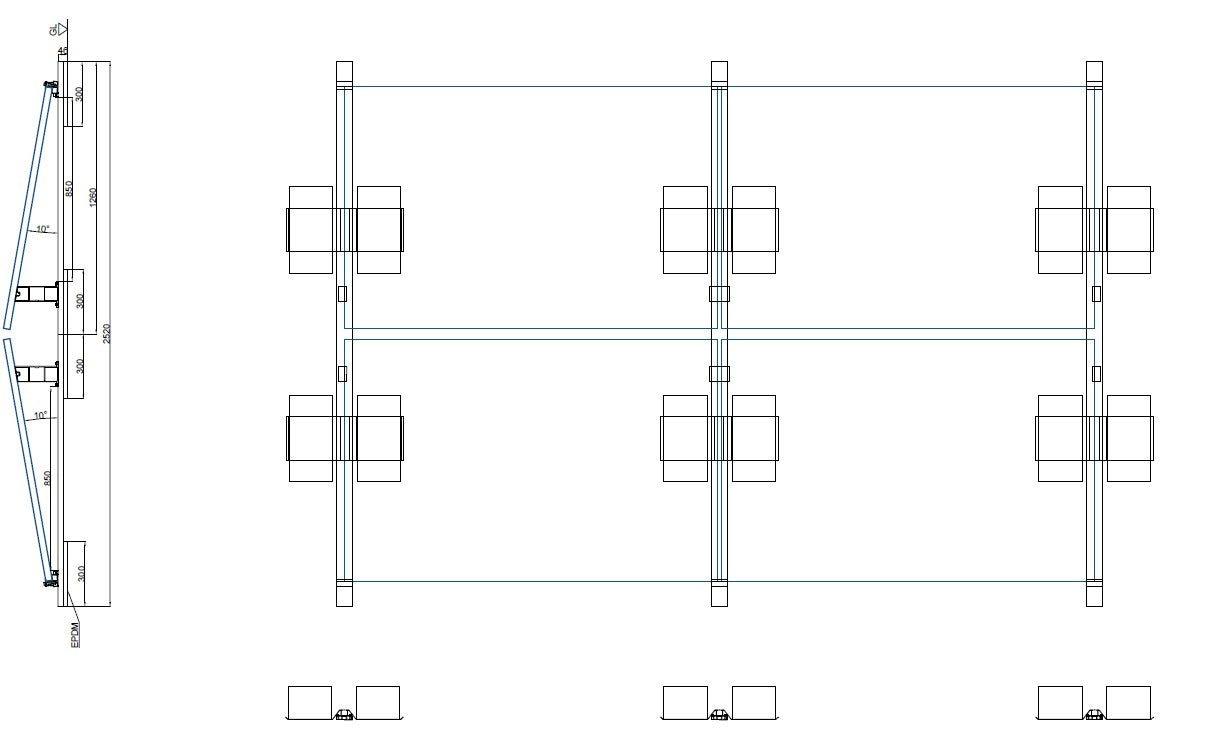

The flat roof mounting system for 4 solar modules is designed for ballast-based PV installation on flat roofs without roof penetration. It supports both south-facing and east/west module layouts with a fixed 10° tilt angle.

The system is suitable for a wide range of flat-roof surfaces, including foil, bitumen, gravel, green roofs and trapezoidal sheet roofs. Corrosion-resistant aluminium and stainless-steel components support durable outdoor use.

Complete mounting system for 4 solar modules

• Designed for 4 solar modules
• South or east/west orientation
• Fixed tilt angle: 10°
• Ballast-based installation
• No roof penetration required
• Suitable for common large monocrystalline and polycrystalline modules

Suitable for different flat-roof surfaces

• Foil roofs
• Bitumen roofs
• Gravel roofs
• Green roofs
• Trapezoidal sheet roofs

Ballast-based installation without roof penetration

The mounting system is stabilised using ballast containers integrated into the structure. Suitable paving stones can be placed in the base rails to provide the required additional weight.

According to the available product data, paving stones of approximately 9.4 kg with a width of 200 mm can be used for weighting.

10° tilt for efficient use of roof space

The low 10° mounting angle allows several solar modules to be installed efficiently on the available roof area. Depending on the project, the modules can be arranged in south-facing or east/west orientation.

Weather-resistant construction

• Aluminium mounting components
• Stainless-steel components
• Corrosion-resistant materials
• Designed for long-term outdoor installation
• 10-year manufacturer's warranty
• Designed service life: 25 years

Scope of delivery for 4 solar modules

• 6 × base rails, 1,260 mm
• 12 × EPDM rubber pads
• 3 × connectors
• 6 × front legs
• 6 × rear legs
• 6 × lower clamps
• 4 × end clamps
• 2 × middle clamps
• 6 × ballast containers

Typical applications

• Commercial flat-roof PV systems
• Residential flat-roof installations
• South-facing module layouts
• East/west module layouts
• Projects where roof penetration should be avoided
• Four-module photovoltaic systems
