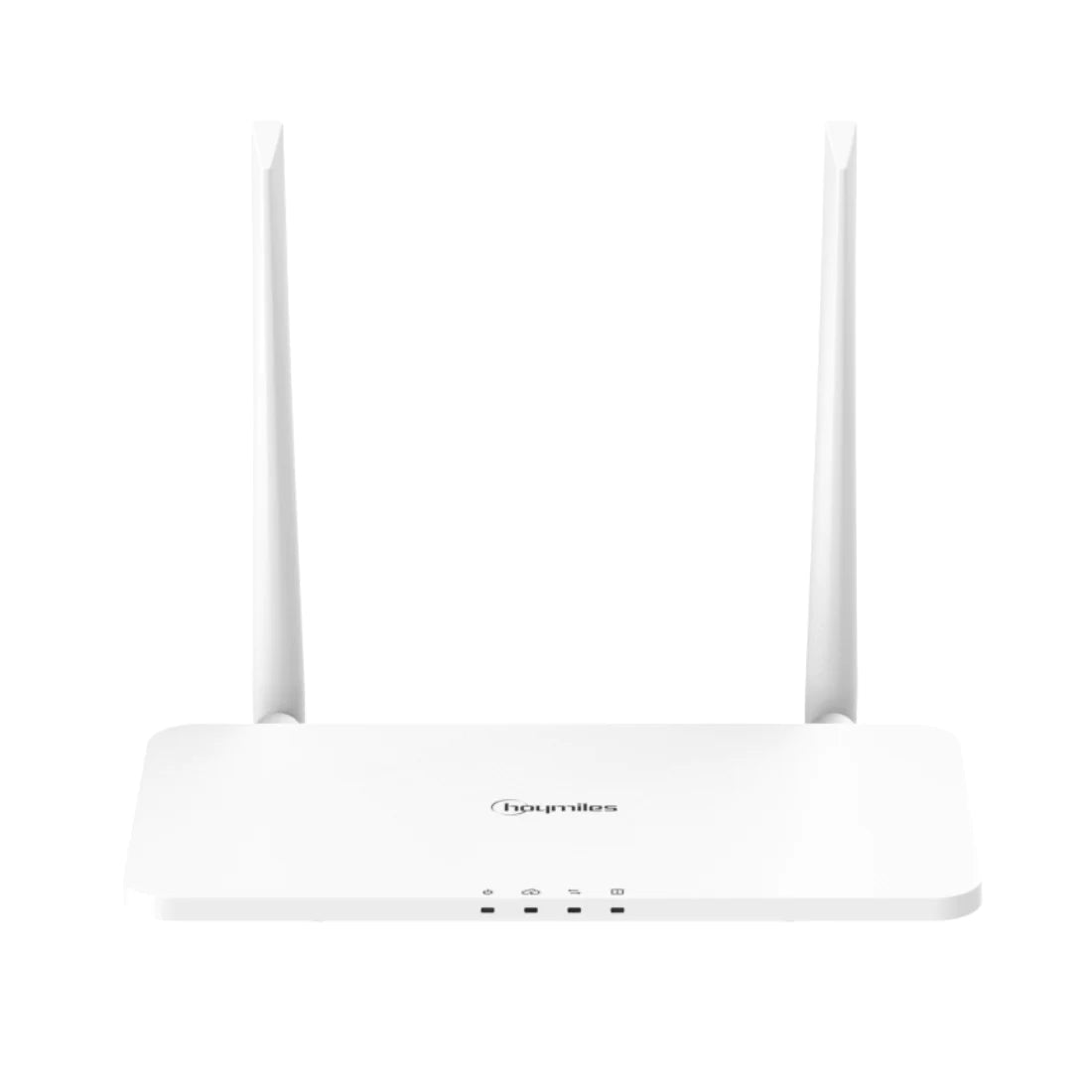

Hoymiles DTU-Pro-S | WLAN control unit for Hoymiles HMS & HMT series inverters

The Hoymiles Gateway DTU-Pro-S is a data transmission unit that collects information and data from PV microinverters using a sub-1G wireless solution and sends it to the S-Miles Cloud, the Hoymiles monitoring platform, via various communication options such as Ethernet, Wi-Fi or 4G.

With DTU-Pro-S, users can easily read the data and alarms at the module level and realize remote control and remote maintenance of the PV system anytime and from anywhere via the S-Miles Cloud.

S-Miles account creation

The S-Miles account can be created directly by the end user.

You can find the S-Miles account creation guide here .

Highlights :

Reliable and flexible

• The wireless Sub-1G radio solution enables stable communication with HMS and HMT series microinverters
• More communication options with Ethernet, WLAN or 4G
• Supports RS485, Ethernet for communication with peripherals

Simple and efficient O&M

• Monitoring and data storage at module level
• Local configuration with S-Miles Toolkit
• Support remote O&M including remote upgrade, parameter setting

Intelligent

• Intelligent zero export control and power export limitation
• Monitoring of PV generation and load consumption

Documents: Quick Installation Guide , User manual

Technical data:

Communication with the cloud

- Signal: Wi-Fi/Ethernet

- Sampling rate: every 15 minutes

Communication with the microinverter

- Signal: Sub-1G

- Maximum distance (open air): 400 m

- Limit value for monitoring data of solar modules: 99

interaction

- LED 4 LED indicators: RUN, Cloud, MI, ALM

- App: S-Miles Toolkit

Scope of delivery:

1x DTU-Pro S
