Entratek Roof | Balcony power plant 800 W / 910 Wp complete set | Glass-to-glass bifacial full black solar module | Including bracket for tiled roofs/pitched roofs

Mini solar system for tiled roof with Bracket (pair mounting)

The Entratek Roof M mini solar system is suitable for installation on all pitched roofs with standard roof tiles (pan tiles, such as Frankfurt or Harz pan tiles). You will receive a weatherproof mounting system with which you Your solar modules in pairs next to each other on your tiled roof you can mount.

The substructure consists of a Rail system, module clamps, and roof hooks including screws . The mounting kit already includes components for mounting four solar modules, offering you the flexible option for easy future expansion.

• Simple structure
• All in one package
• Stable holder
• Top price-performance
• High-quality components

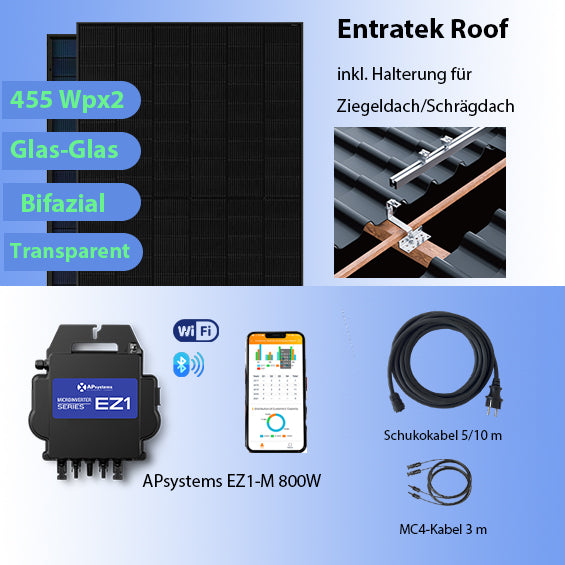

Solar set

- 2x solar modules (455 Wp each)

- 1x APsystems inverter EZ1-M, controllable via app

- 1x substructure for tiled roof (extendable to 4 solar modules)

- 4x extension cables MC4 (3 m)

- Please select the appropriate connection cable

Product description

The Entratek Roof system is very easy to install and can be installed on all pitched roofs with standard roof tiles (pan tiles, such as Frankfurt or Harzer pans).

When mounted in pairs on the roof, the modules are mounted vertically and directly next to each other or horizontally and one above the other. The compact size of the mounting rails makes them easy to handle. The highest quality, corrosion-free materials made of stainless steel and aluminum ensure a secure and durable installation.

Once the solar system is connected, the inverter converts the generated solar power into grid power. This power flows into the household via a power outlet and can be used immediately by your electrical appliances. If not enough solar power is generated, electricity is added from the grid. Since electricity meters operate on a balancing basis, the electricity fed into the grid is available throughout the entire electrical circuit. The inverter's output is 800 watts, so you can register the system with the grid operator yourself (800 watt limit).

The high-yield mini solar systems are designed for outputs of up to 455 Wp (watt peak) per module. Depending on the orientation, two modules can feed up to 910 kWh per year into the home grid. In other words, with current electricity prices, you can Save energy worth approximately €326 per year.* The energy transition can be so affordable – thanks to the mini solar system!

*Forecast for south-facing location in Cologne (at electricity price 37.14 ct/kWh)

Scope of delivery

2x Jolywood 455W bifacial 2mm glass-glass JW-HD96N Full Black solar module

Highlights:

• Weather resistance: The glass-glass modules can better withstand weather influences such as hail, snow, storms and UV radiation.
• High mechanical strength: The glass panes on both sides of the modules help to distribute point loads evenly.
• Temperature dependence: Heat is dissipated more effectively from the solar cells, which reduces the temperature dependence of the performance.
• Increased fire protection: The construction with glass on the front and back increases fire protection and thus safety during operation.
• 30-year linear warranty
• 25-year product guarantee

Technical data:

• Max. output power: 455 Wp
• Efficiency: 22.8%
• Power tolerance: 0-5 W
• Max. system voltage: 1500 V
• Max. permissible reverse current: 30 A
• Cell type: n-type bifacial monocrystalline silicon cells
• Color: Black
• Dimensions (H x W x D): 1762mm x 1134mm x 30mm
• Cable length: 1.2 m
• Weight: 24.6 kg
• Glass thickness: 2 mm
• 1 pallet: 37 pieces

Downloads: Data sheet Installation instructions

1x APsystems EZ1-M 800 Watt microinverter

APSystems microinverters are among the most advanced and reliable devices on the market for all residential and commercial applications. The fourth generation of APsystems' dual microinverters achieves unprecedented output power of 799 VA with the EZ1-M and is the ideal inverter for 800-watt balcony systems, adapting to today's larger module power requirements.

The two independent MPPT trackers monitor each solar module individually, ensuring that shading from one module does not affect other modules. The new EZ1-M micro inverters benefit from a completely new architecture. The innovative and compact design makes the product lighter and maximizes power production. The components are encapsulated with silicone to reduce stress on the electronics, facilitate heat dissipation, and improve water resistance. Rigorous testing methods, including accelerated life tests, ensure maximum system reliability. 24/7 energy access via apps or a web-based portal facilitates remote diagnostics and maintenance.

The new EZ1-M series interacts with power grids through a function known as RPC (Reactive Power Control) to better manage photovoltaic power peaks in the grid. With a power output and efficiency of 97.3%, a unique integration with 20% fewer components, the APsystems EZ1-M sets new standards for residential and commercial PV systems or balcony power plants. The EZ1 series complies with VDE AR-N 4105:2018-11. The current status of the inverter can be read via an LED on the device.

EZ1-M offers two modes, “Direct Connection Mode” and “Remote Control Mode” for monitoring the device.

Direct connection mode: The APP connects to the device's Bluetooth so that the user can monitor and control the device locally.

If Wi-Fi is not available, the user can monitor and control the device in direct connection mode.

Remote control mode: Login account, users can remotely monitor and control the device.

Designed for easy connection of solar modules on balconies, the plug & play function enables quick installation in 5 minutes and makes solar energy accessible to everyone.

Here you will find a video on installation in 5 minutes.

• Brand: APsystems EZ1-M
• PV module power range: up to 450 Wp per panel
• Voltage range: 22 V-55 V
• Operating voltage range: 16 V-60 V
• Max. input current: 18 A x 2
• Nominal output voltage: 230 V
• Rated output frequency: 50 Hz
• Protection class: IP 67
• Temperature range: -40 °C to 65 °C
• Warranty: 10 years
• Comply with the requirements of VDE-AR-N 4105
• CE mark

• Document:

• Data sheet
• User manual

• App instructions

• Unit certificate according to VDE 4105

• Certificate for NA protection

1x  Mounting system for tiled roof / pitched roof for 2-4 solar modules

For installation on pitched roofs. Made of the highest quality, corrosion-free stainless steel and aluminum, it's extremely stable and weatherproof.

For installation, the roof hooks are screwed into the wooden rafters of the roof, leaving a recess in the tile the size of the roof hook. The module rails are then attached to the screwed roof hooks. In the final step, the solar modules are attached to the rails with the module clamps. Operating instructions all steps are clearly shown again.

Accesories: MC4 extension cable

The package includes 3 m MC4 extension cables so you can space the modules apart if necessary. The inverter is attached to the frame behind the module using the included clamps.

A notice :

Since we're assuming you're installing the microinverter on the back of one of the solar panels, there are usually already PV cables on the back of the solar panel. Therefore, you typically only need two pairs of extension cables.

We recommend measuring the distance between the microinverter and the solar panels before installation to ensure you have enough MC4 cables for the installation. If two pairs of 3m PV cables are not sufficient, you can here order additional cables.

To choose from: Connection cable

Please select the appropriate power cable. The power cable connects the inverter to the power outlet. With the Schuko plug, you can operate your system legally and easily commission it yourself.
